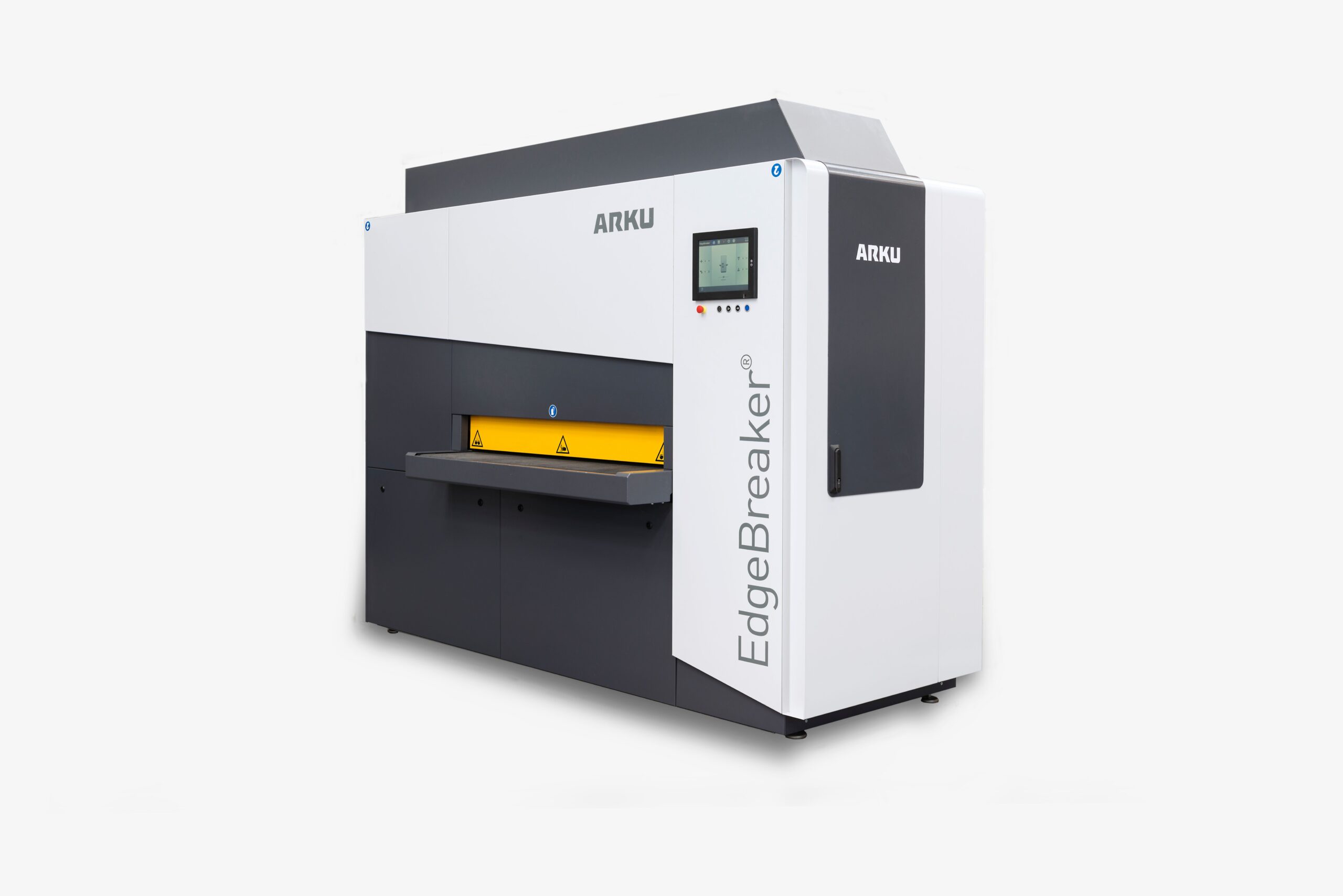

EdgeBreaker® 2000

High quantities but still flexible for different edge requirements: the quick change of the brushes allows for individual deburring or rounding on each side. The machine is ideal for your processing needs and operates double-sided.

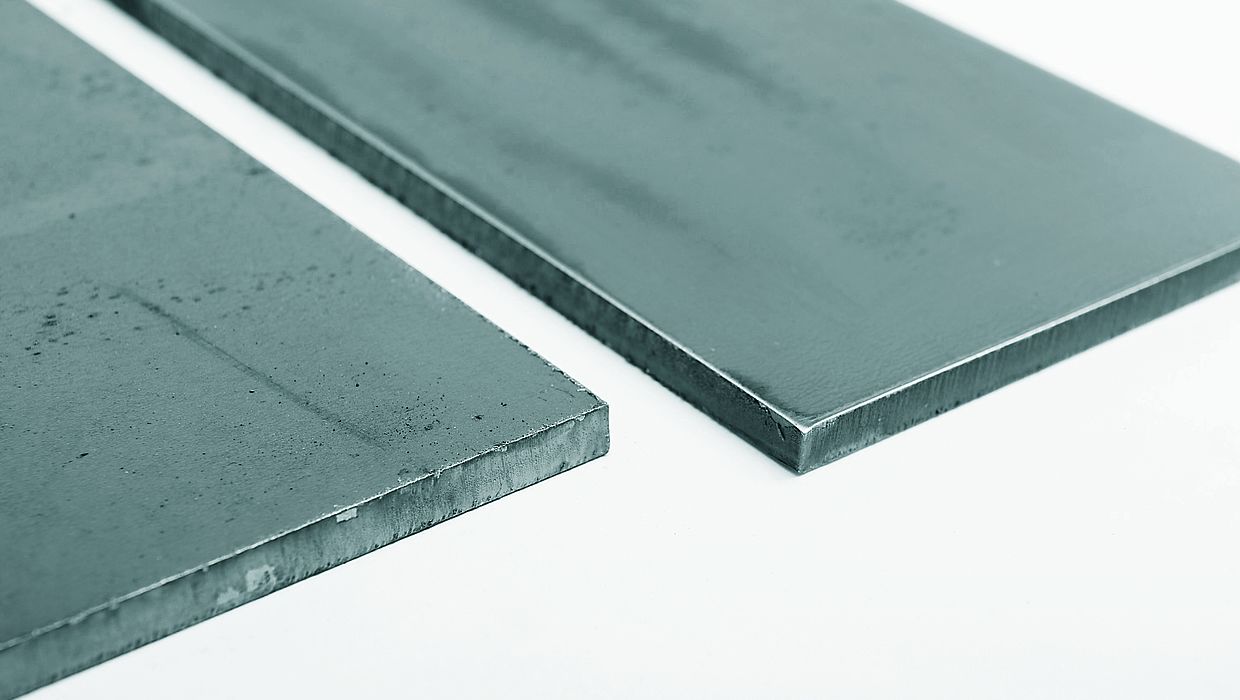

The EdgeBreaker® 2000 edge deburring & rounding machine is designed for versatile processing after punching and laser cutting. Cross-running brushes are outfitable with various processing media. This allows you to individually adjust for the correct amount of deburring and edge rounding. The machine is designed for double-sided processing in just one single pass.

Advantages:

• Processing in just one single pass
  The EdgeBreaker® 2000 processes punched and laser-cut parts in just one single pass. You are able to save up to 50% of the time compared to working with a single-sided solution.
• Quick change of abrasive media

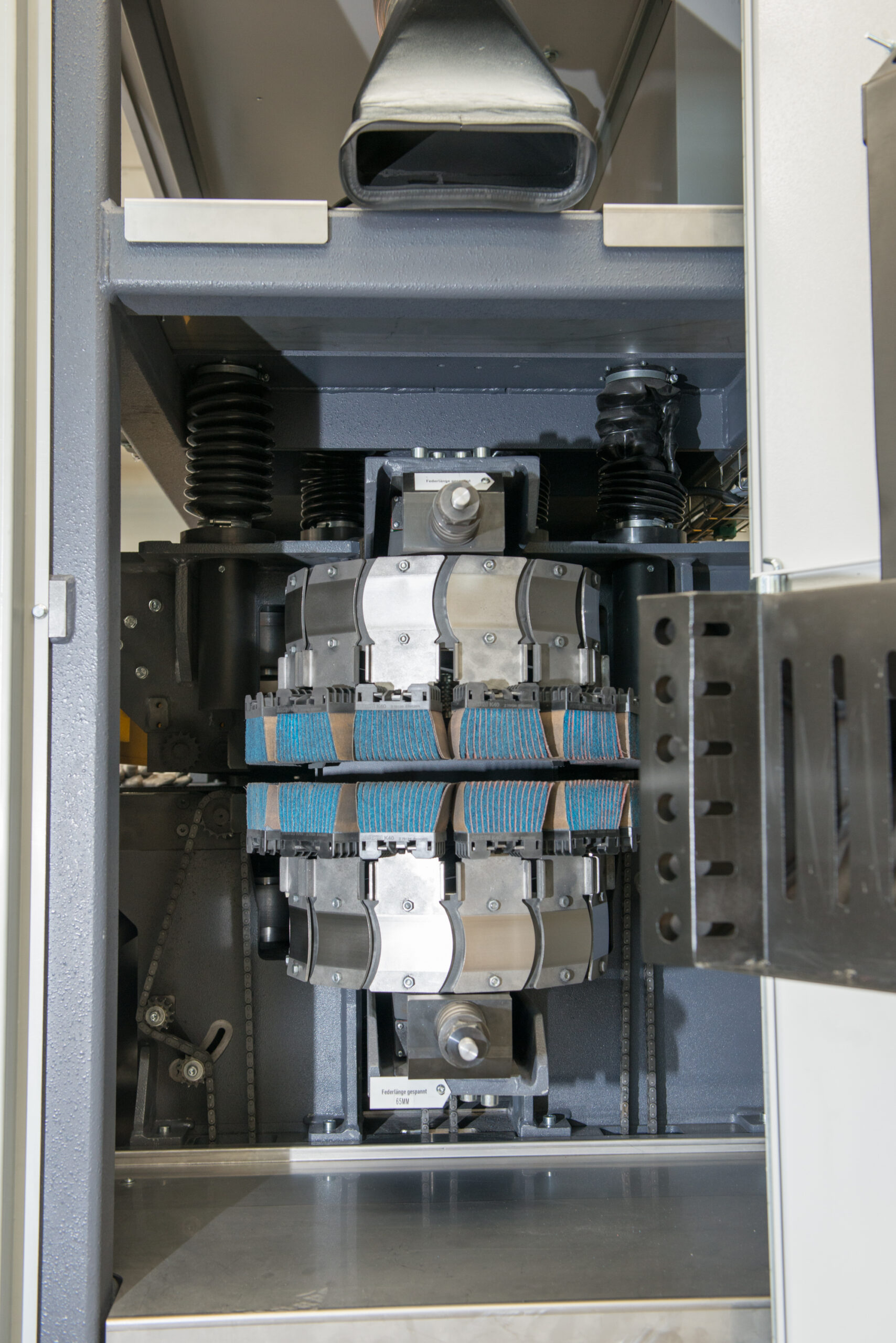

  The EdgeBreaker® 2000 was designed with the goal of keeping downtime to a minimum. All abrasive media of the various processing units can easily be changed, and the inside of the machine is purposefully accessible for faster routine cleanings and maintenance.
• User-friendly
  The touchscreen HMI is truly intuitive. This feature enables even new operators to quickly and easily setup the machine. It can even give you guidance on operating and maintenance. For efficient processing and minimal operator error.
• Automatic calibration / media wear compensation
  For consistent results, it’s important to know the remaining length of the abrasive media. This is crucial to producing repeatable, high-quality parts. The EdgeBreaker® 2000 measures the remaining length of the abrasive media and automatically compensates for the wear, further minimizing operator error.

Technical Data
Processing: two-sided, dry
Material thickness: 0.8 – 80 mm (0.03″ – 3.15″)
Max. working width: 1300 mm (51″)
Weight: approx 2,900 kg (6,300 lbs)
Dimensions: 2900 x 1500 x 2200 mm (114″ x 60″ x 87″)
