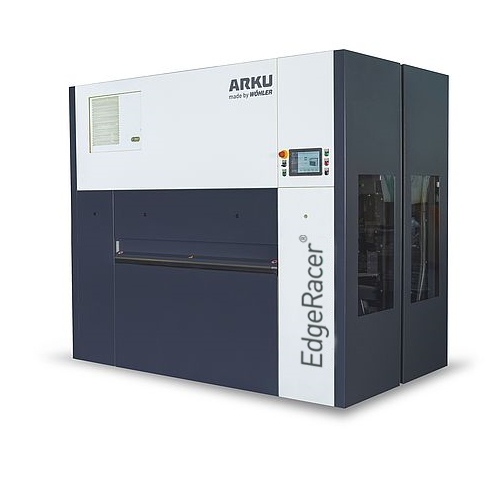

EdgeRacer®

The EdgeRacer® procceses thin parts, even three dimensional or deformed parts, double-sided in just one single pass. This makes the machine particularly economcial for medium to high quantities in industrial sheet metal processing.

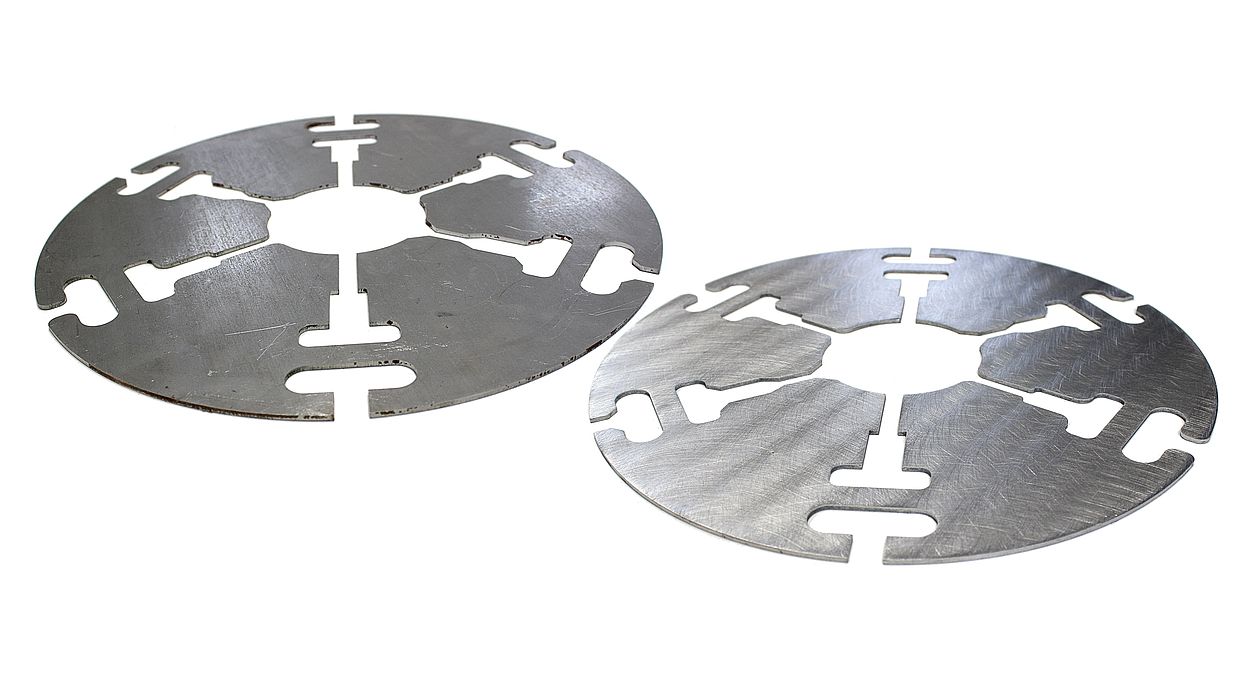

The EdgeRacer® deburring system efficiently edge rounds and deburrs inner and outer edges, double-sided. This allows for high-quality results with 100% reproducibility. The 3D parts deburring machine is also capable of processing three-dimensionally formed parts and sheets effortlessly. Additionally, the EdgeRacer® can also remove any oxide layer from the cutting edge of the material.

Advantages:

• Processing in just a single pass
  The EdgeRacer® processes punched and laser-cut parts in just one single pass. You are able to save up to 50% of the time compared to working with a single-sided solution.
• Quick change of abrasive media
  The EdgeRacer® was designed with the goal of keeping downtime to a minimum. All abrasive media of the various processing units can easily be changed, and the inside of the machine is purposefully accessible for faster routine cleanings and maintenance.
• Oxide removal
  The EdgeRacer® is also capable of removing the oxide layer among the cutting edges of the material.
• User-friendly
  The touchscreen HMI is truly intuitive. This feature enables even new operators to quickly and easily setup the machine. It can even give you guidance on operating and maintenance. For efficient processing and minimal operator error.

Technical data
Processing: double-sided, dry
Material thickness: 0.5 – 50 mm (0.02″ – 1.97″)
Max. working width: 1500 mm (59″)
Weight: approx. 4,000 kg (8,800 lbs)
Dimensions: 3300 x 2700 x 2500 mm (130″ x 106″ x 98″)
