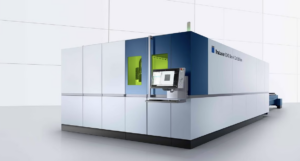

TruLaser Series 3000 Bevel Cut Edition

TruLaser Series 3000 Bevel Cut Edition: Flexible 2D Laser Cutting with Bevel Cutting Technology

The TruLaser Series 3000 Bevel Cut Edition offers unmatched versatility for 2D laser cutting. With integrated bevel cutting technology, this machine precisely cuts geometric shapes at angles directly on the edge of the workpiece. Capable of achieving bevel angles up to 50 degrees, it is an economical choice for applications requiring as little as 5% bevel cuts, delivering up to 80% savings in processing time and assembly costs.

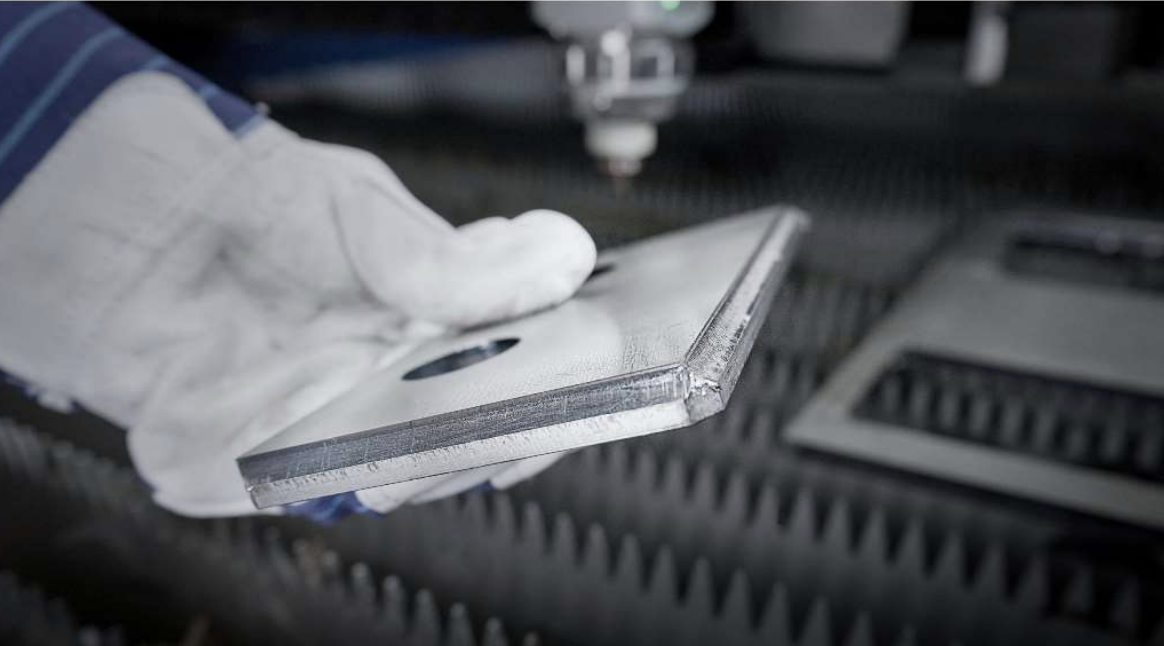

Designed for both thin sheets and materials up to 25 millimeters thick, the TruLaser Series 3000 allows chamfers to be applied directly on the machine, eliminating additional steps and optimizing efficiency.

Additional information on TRUMPF’s TruLaser 3000 Series Bevel Cut Edition can be found here.

Category:

Description

Key Features:

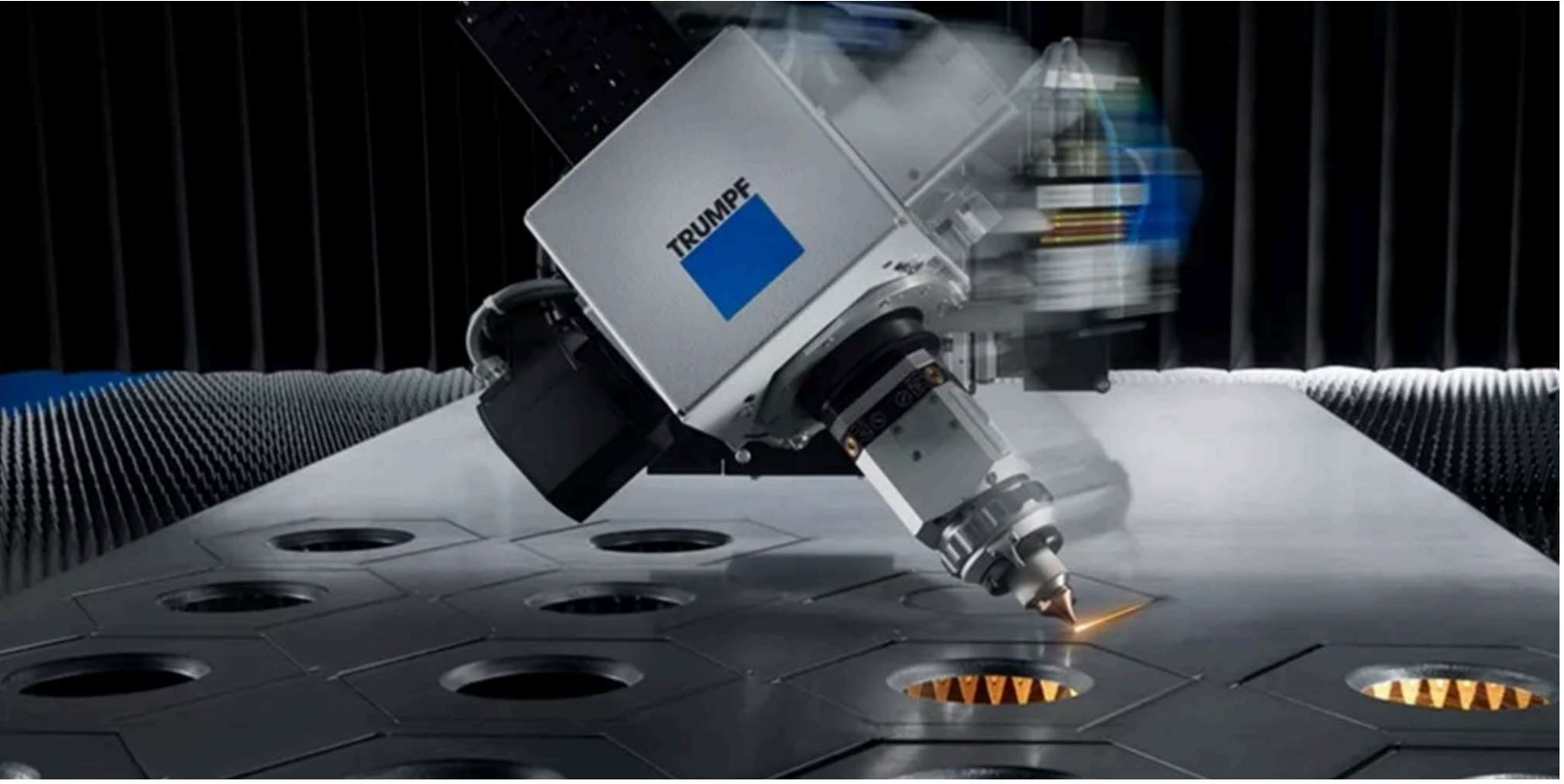

1. Versatile Production: The inclinable cutting unit supports chamfers, countersinks, and bevel angles up to ±50°, offering unmatched flexibility.

2. Streamlined Workflow: Bevel cutting reduces the need for secondary processes, lowering costs and shortening production time for your assemblies.

3. Wide Material Compatibility: Efficiently process mild steel and stainless steel with bevel cuts, while retaining the ability to handle all other materials with vertical cuts.

4. Universal 2D Laser Cutting: Leverage all the advanced features of the TruLaser Series 3000, including Highspeed Eco, CoolLine, and EdgeLine Bevel, for unparalleled cutting precision and speed.
